Medal Aluminium System

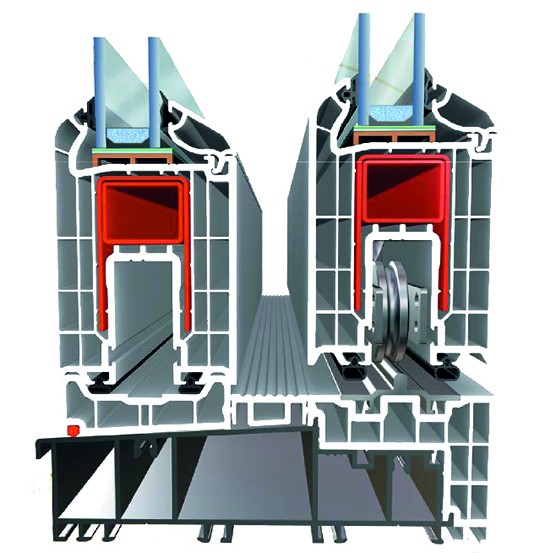

HEBE SCHIEBE

• Case profile has a width of 170 mm and 6-7 chambers.

• To ensure maximum sound and heat insulation with case profile width of 70 mm and 5 chambers, it is possible to be used with quality glass between the range of 20, 24, 28, 34, 40mm.

• Wall thickness of the case and sash profile is A class.

• Heat insulation of the aluminium sill profile is ensured with PVC sill closure from inside.

• As the screws used in the mounting of the case profile, may be hidden under the auxiliary profiles; the screws are not visible from outside.

• The case profile is designed so as to be mounted on-site as demounted, in terms of providing ease of transportation and mounting.

• It is ensured that the system can be used in wide spans which the wind load resistance need is more, by means of special bended support plate used in sash profiles.

• Insulation advantage is provided with dual seal used in the conjunction of case and sash.
